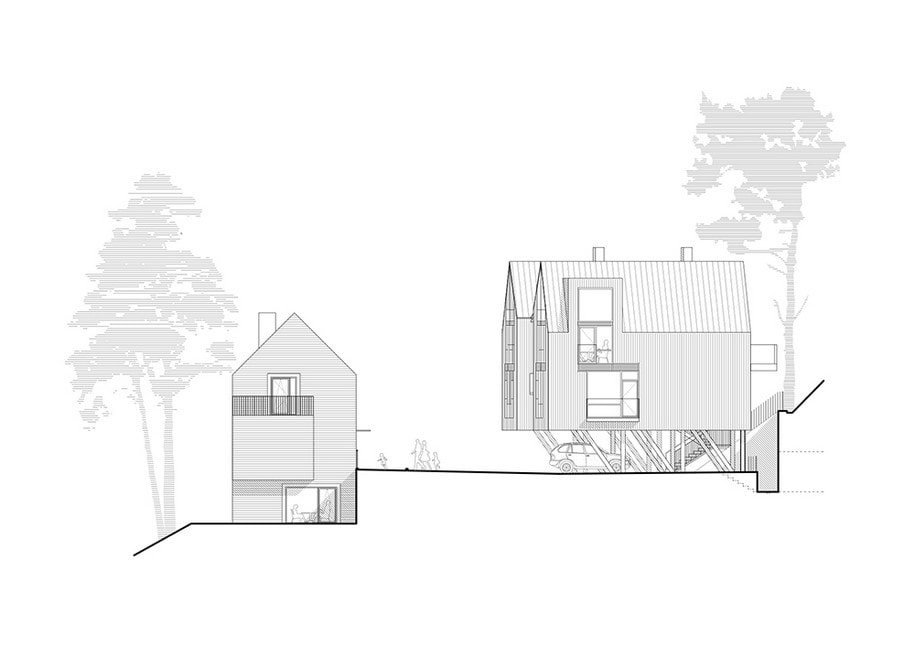

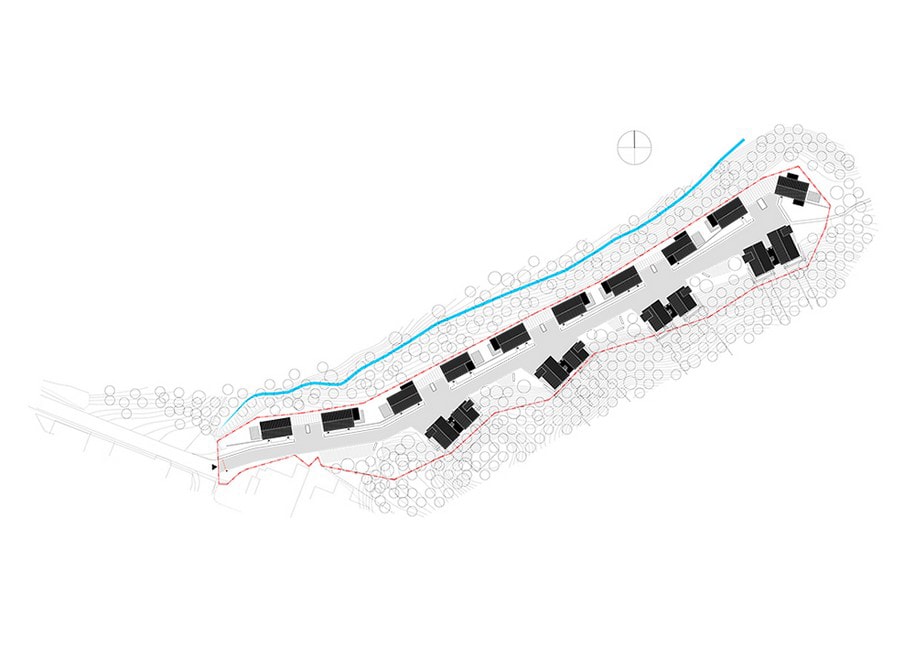

A 7000 sq. m. plot of land in the cul-de-sac of Rasu street features a tall tree wooded slope with a northern orientation, 1920s ammunition vaults on the higher ground and a narrow creek on lower levels. The new houses in the higher part of the plot are elevated on slender columns in order to “catch” the sun and leave the walls of historical vaults undisturbed. Meanwhile the buildings down the slope are lowered in order to get more privacy and provided with the yards on the creek bank. The main design challenges were: an extremely narrow site with cross height difference, lack of sun and affection to historical objects. The key answer to it lay in the duality: ELEVATED + LOWERED.

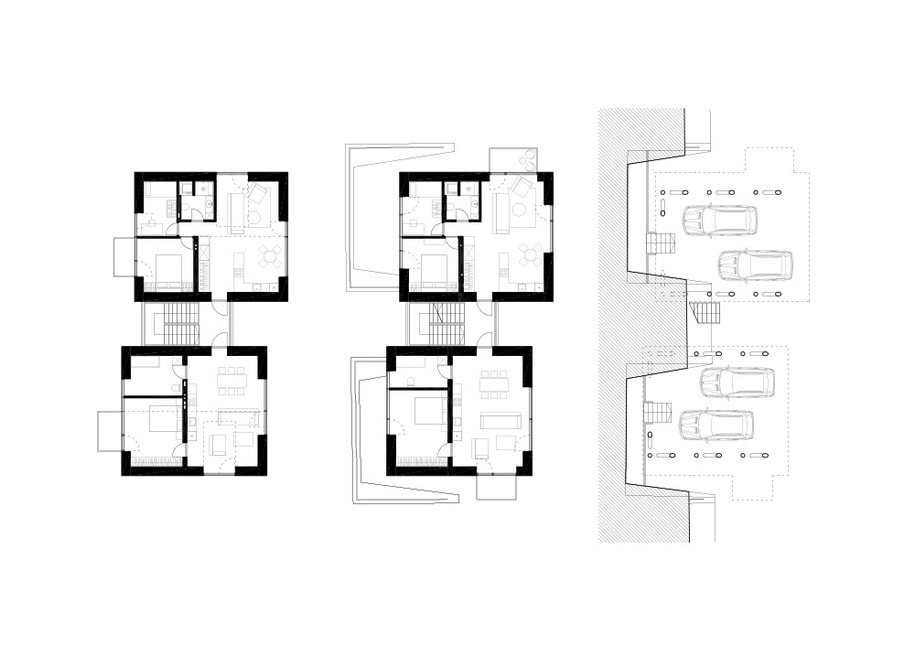

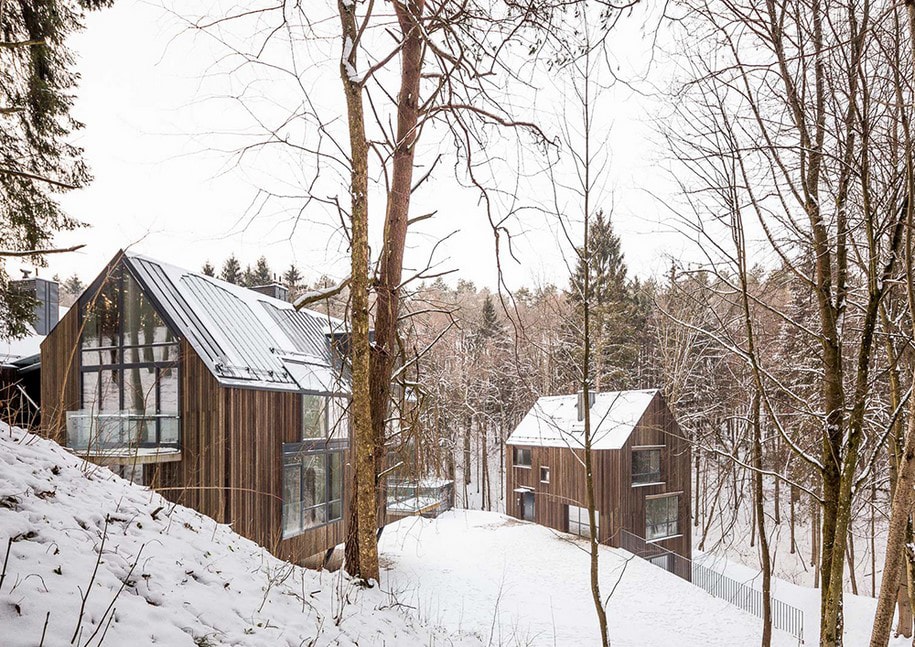

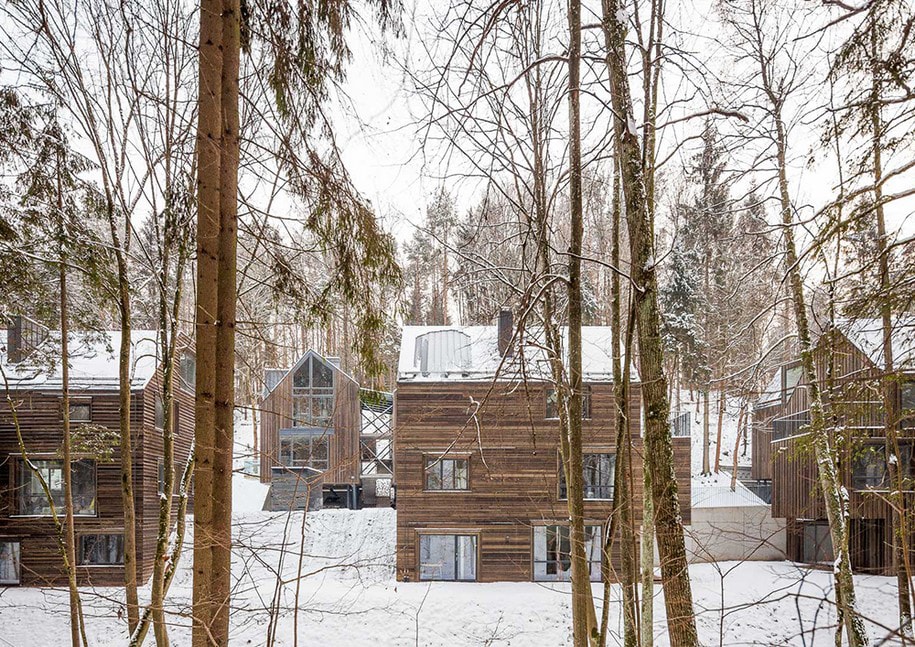

8 ELEVATED houses are set between the retaining walls of the ammunition vaults or placed above their cornices to ensure their visibility from the street. The pairs of houses correspond to the pairs of entrances to the vaults. These houses are angled to correspond with the entrances to the vaults. The northern side of the street is shaped by the intermittent perimeter of LOWERED houses. 10 separate buildings connect two terraces: the bank of the creek and the street. Retaining walls between the houses separate the places for cars on the street level and private terraces below.

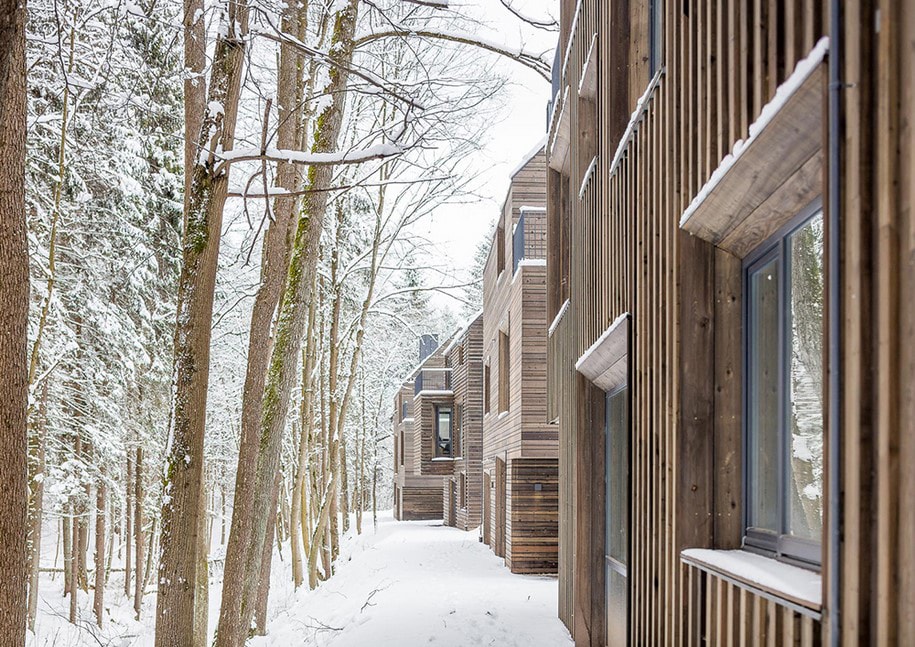

The complex of houses is harmonized by uniform materialization: buildings are clad in wood planks of several different textures, influenced by local traditions.
Homogenous architectural details, scale and color of the buildings enhance the idea of unity even further. The perspective of the street is not obstructed, but rather extending into the valley of Ribiskes landscape reserve.

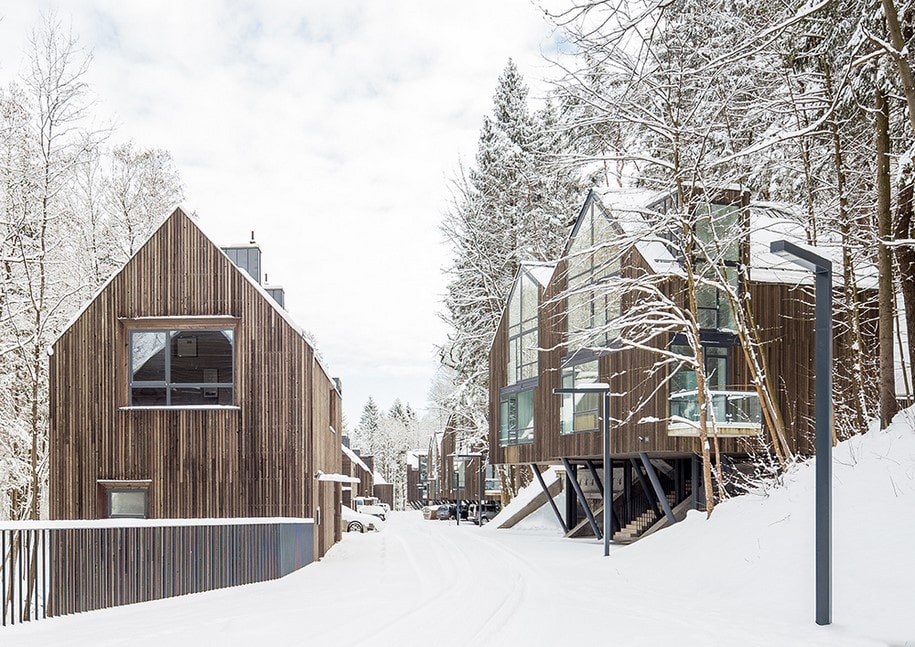

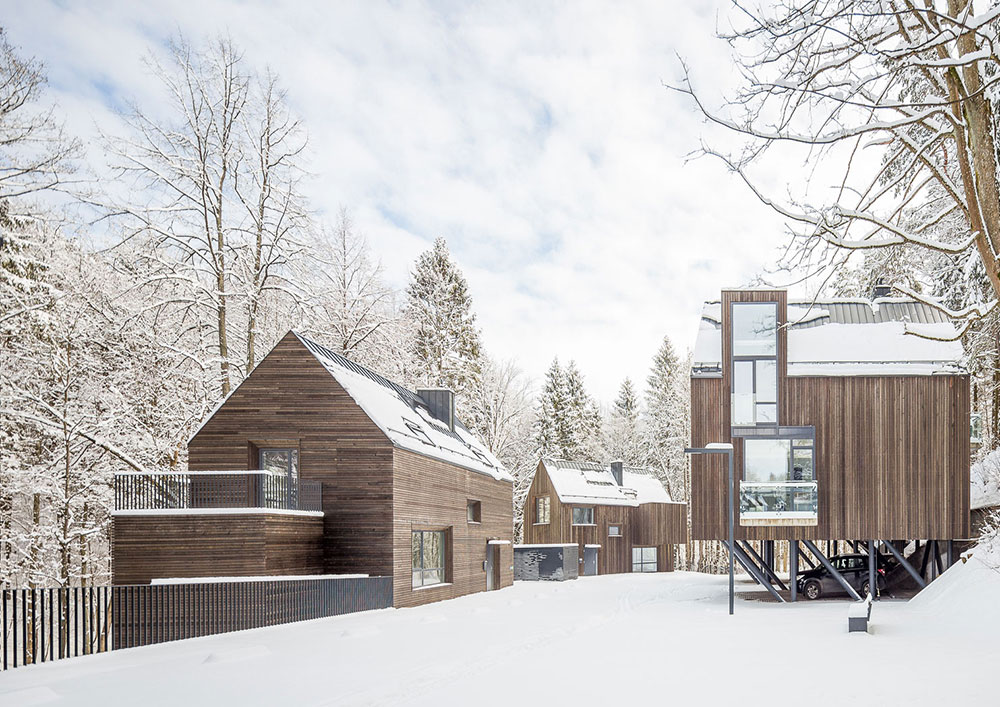

The idea to raise the upper houses on metal stilts required the use of concrete structures while other elements of the project employs local, traditional building materials such as clay brickwork and wooden roof structures. The facades are clad in Siberian larch harvested in the nearby areas and initially patinated to keep it as much maintenance free as possible. The compact size of the building decrease heat losses as well as provide easy accessibility to every element if repair is necessary. The relation between local nature, historical objects, textures and the new structures might be considered as an aspect of non-energetic sustainability.
Facts & Credits:
Name of work in English: Rasu Houses
Name of work in original language: Rasų Namai
Placement: Shortlisted
Prize year: 2017
Location: Vilnius, Lithuania
Year completed: 2015 (Year began 2013)
Studios: Paleko Arch Studija;, PLAZMA Architecture Studio
Authors: Rolandas Palekas (1963 Lithuania); Bartas Puzonas (1981 Lithuania); Petras Išora (1984 Lithuania); Rytis Mikulionis (1969 Lithuania); Gytis Vaitkevičius (1981 Lithuania); Povilas Daugis (1989 Lithuania)
Collaborators
Construction company: Contestus Structural engineering: Constr Architect: Akvilė Brazauskaitė
All images: © Norbert Tukaj
Program: Single house
Labels: Complex, Isolated, Semidetached
Total area: 7219
Usable floor area: 2890
Client: Contestus
Client Type: private
