“Building bridges” by Th. Athanasopoulos, A. Dimitrakopoulos, M. Galani, S. Kapsaski wins honorable mention in the competition for the New Headquarters of the Ministry of Infrastructure in Athens

“Building bridges”, a competition entry for the New Headquarters of the Ministry of Infrastructure in Athens by Th. Athanasopoulos, A. Dimitrakopoulos, M. Galani, S. Kapsaski, arises as a motto acting tentatively as the project statement, thus reflecting the nodal role and significance of a ministry serving political and economic development in Greece.

AERIAL PERSPECTIVE OF ENTIRE COMPLEX

The structural and formal scheme emphasizes a suspension superstructure with visually prominent exoskeletal lattice webbing. The imposing upper volumes are systematically supported by axially set, centrally located and hidden from view structural and service cores that transfer loads while hosting the circulation system – elevators and stairs. The main workspaces of the ministry appear thus as hovering above a perforated ring shaped as to emphasize site geometries.

SITE PLAN WITH FUTURE GROWTH ANTICIPATED
CONCEPT DIAGRAM SEQUENCE

While the totalizing architectonic intention is served without compromises, the project displays a very rational organization optimizing services and offering a systematic structural approach. Each service core contains adequate service shafts/cavities for prime quality office space. An imposing scale of the pure solids is here reversed by a series of conditioned layers allowing opacity and permeability.

STREET-LEVEL PERSPECTIVE FROM PIREAUS STREET
DIAGRAM OF CIRCULATION AND ACCESSIBILITY

The serially pierced perimeter with its overlaid continuous band of programmable space offers the duality of acting at the street scale on-ground and as a landmark at greater scale beyond. For pedestrians, the massing scheme enables an outward terrain, while acting as a hugging introverted enclosure. The punctured background the upper ‘ring’ of volumes enables for a vibrant urbanity on the raised plinth terrain, a domain of increased activity yet of sheer openness.

FRONT ELEVATION – PIREAUS STREET
CROSS-SECTION THROUGH ATRIUM

The design strategy was a direct – even obvious – response to the context analysis in the macro and micro scale. Immediate planning priorities were set by the city on the development of a transportation hub serving the city of Athens. Meanwhile, its implementation has been held, reflecting the economic discrepancies and the contradictory programmatic agendas of land owners. The property planning bears the extreme marks of its destination to act as a truck-accessed intermodal node.

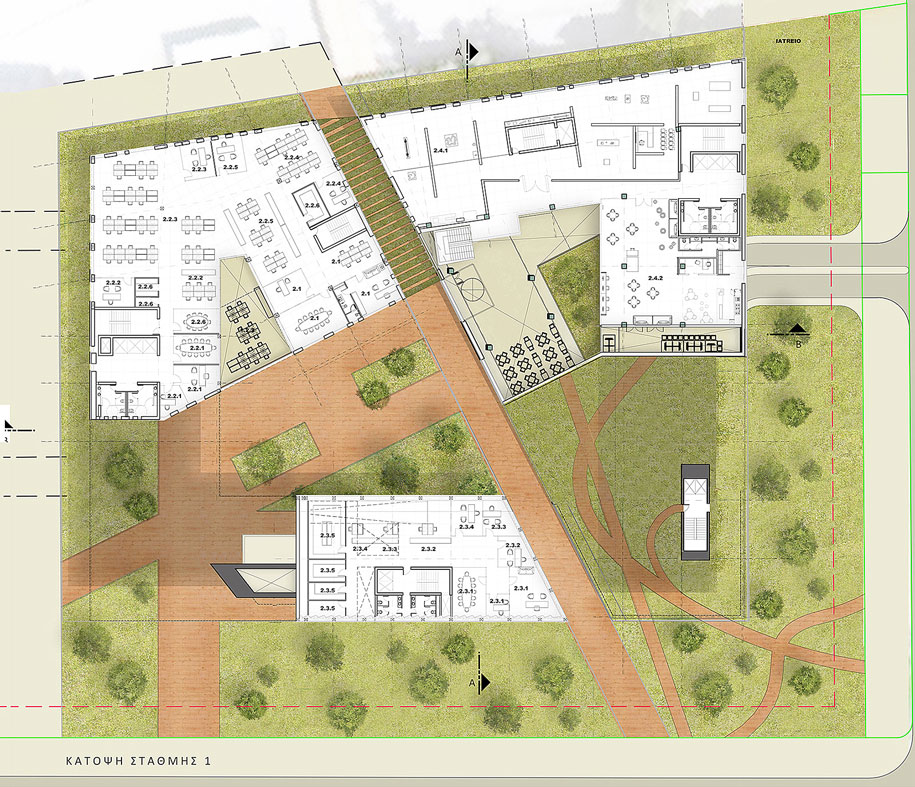

GROUND FLOOR PLAN

The planar scheme is divided in two independent entities due to siting restrictions imposed by the city planning department.  An L-shaped wing and a C-shaped form are interlinked at ground level with a perforated planted pergola and are programmatically connected only through the underground programmatic zones – archives and parking garage floors.

ATRIUM PERSPECTIVE AT PEDESTRIAN LEVEL

Three main entryways and lobbies serving the entire complex are positioned in direct contact with the central outdoor court. All programmatic entities are organized around this large central public space, readily accessible from adjacent streets. By lifting the workspace on pilotis that expand along the Piraeus Street frontage, all unbuilt ground-level zones of the outer perimeter are visually extended as to merge with the inner court, thus creating a single public-access destination. This network of outdoor spaces is animated and enhanced by a sloping roof-garden or ‘ascending park’ created at the northeast side of the site, also directly accessible from Piraeus Street.

2ND FLOOR PLAN
3RD FLOOR PLAN

Τhe planted tilting slab shelters public gathering areas extended on two levels, setting an identity for the northern L-shaped building. A conference center, including an amphitheater and the multipurpose hall, a restaurant, doctor’s office, the main foyer and reception area are located here with the vertical circulation hub leading to an upper level of the Museum of Technology and kindergarten. At the 3rd floor the pilotis open to the outdoors at great extent, while limited enclosed spaces at this level accommodate independent departments and offices. The 4th floor of the C-shaped building includes the General Directorate of Natural Disaster Impact Rehabilitation, while at the 5th and 6th levels are occupied by the Unit Hydraulic, Port & Building Infrastructure. The southern C-shaped volume hosts the General Secretariat for Infrastructure at ground level, which extends to the 2nd and 3rd levels. Towards Piraeus Street, the small section of the G.G. Infrastructure is located. The upper sections of the building, 4th and 5th level, host the General Directorate of Transport Infrastructure. The 6th level is occupied by the Political Leadership and the Office of the State Legal Adviser, with the spacious offices of the Minister and Deputy Minister located in the advantageous corners facing Piraeus Street. Five underground levels of the complex include a total of 640 parking spaces, the archives of the public authority along with required utility zones and mechanical rooms.

CROSS-SECTION PARALLEL TO PIREAUS STREET
CROSS-SECTION THROUGH ATRIUM

The open plan parti of the administration spaces is based on a 1,5-meter grid (5-foot office planning grid) suited for standardization, economy and flexibility. Departmental heads and senior executives maintain separate office quarters with optimal supervision of their respective secretariats. The extended southern facades, cladded by 50% in photovoltaic panels, provide energy autonomy (350000kWh per year) and act also as vertical shading devices limiting all incoming sun glare, while offering unobstructed exterior views – allowing for optimum sun exposure especially during working hours.

AXONOMETRIC WITH PROGRAMMATIC DISTRIBUTION
OPEN PLAN PUBLIC AUTHORITY WORKPLACE
SUNLIGHT PERMEABILITY AND PHOTOVOLTAIC PANEL EXPOSURE
FRONTAL PERSPECTIVE FROM PIREAUS STREET

The unified office space is naturally lit through its perforated perimeter thus reducing the need for artificial lighting. Low-rise greenery occupies all roofs enhancing the energy profile and improving thermal insulation, setting thus a microclimate along the outer shell. Greywater reservoirs are provided to reduce water consumption and dependency on the water supply network.

ASCENDING PEDESTRIAN REALM ON TILTING PLINTH

Facts & Credits

Design Team   Athanasopoulos Thanos, Aristotelis Dimitrakopoulos, Galani Maria, Kapsaski Stephania
Structural Consultant   Athanasopoulos Michalis
Mechanical Consultant   Pappas Daniel
Award   First honorable mention in the 2019 open architectural competition
